Description

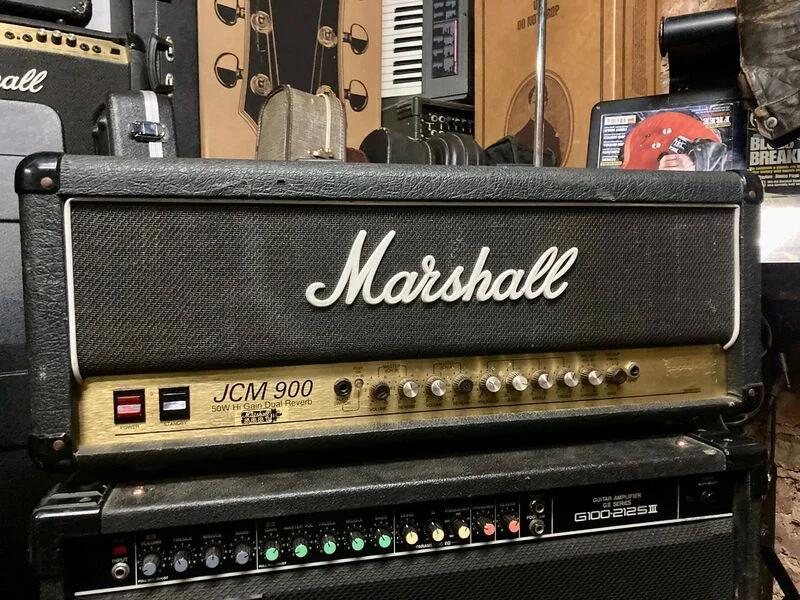

Featuring 50watts (switchable to 25watts), this Marshall has a  five-tube chassis, preamp: 3 x 12AX7s, power: 2 x EL34s, solid-state  rectifier, pentode/triode output stage, two switchable channels with  reverb on both. The front gold control panel features a single input  jack with controls as follows:

Channel “A” Pre-Amp Gain Control sets the gain level for channel “A”.  Lower settings give clean sounds – higher settings for medium drive and  crunch rhythm. Reverb control Channel “A” controls the amount of reverb  on Channel “A”, Master Volume Channel “A” Controls the overall volume  level of Channel “A”.

Channel “B” Lead Gain Control Sets the gain level for boosted Channel  B. Lower settings give slight overdrive – higher settings for maximum  drive and sustain. Reverb Control Channel ”B” controls the amount of  reverb on Channel “B”, Master Volume Channel “B” controls the overall  volume level of Channel “B”. Channel “B” ON Push Switch/LED Indicates  red when Channel “B” is selected either manually or by remote  footswitch.

Footswitch Jack Socket Connects the remote dual footswitch for reverb ON/OFF and Channel A/B switching.

Treble, Middle, Bass & Presence provide a wide range of tonal possibilities for both channels.

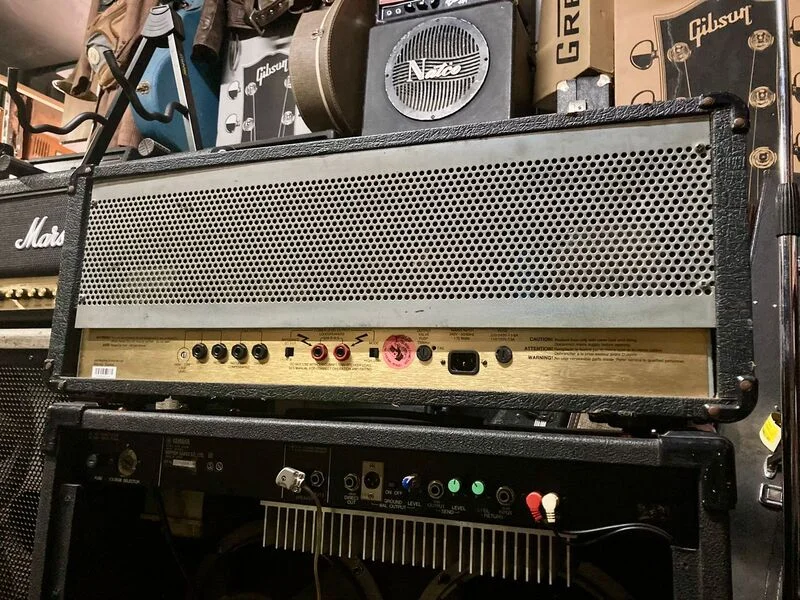

The rear panel features: effects loop with loop level control, DI  out, recording compensated DI out, two speaker jacks with impedance  selector switch, high/low power mode switch, output valve protection  fuse with LED.
